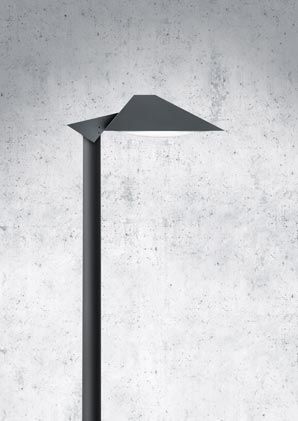

HELLUX TRAPEZ DB 14X

Technical Mast Extension / Post-Top Luminaire

HELLUX Trapezoidal DB 14X

• Available as a double or single light
• Toolless light source change
• Tool-free disassembly of the E-block
• Possibility of tool-free conversion to other bulbs

The main areas of application:

• platforms
• access roads

Technical specifications:

 Type of mounting: Pole top / Pole extension (Ø 76 mm) Degree of
protection:  IP65
Optical system: Wide beam  light distribution
Rated luminous flux :  1200 – 7200 lm Color
temperature:  3.000 / 4.000 K
Protection class:  SK II
Operating voltage / frequency:  50 – 60 Hz,  mounting height
:  6 – 8 m

Additional advantages:

• Optimized silicone seal
• Dirt-resistant design
• DB-listed

Downloads:

Trapeze DB 143:

 Technical Data Sheet Trapezoidal DB
143
Listing Sheet Trapezoidal DB 143 Eulumdat Trapezoidal DB 143

Trapeze DB 144:

 Technical Datasheet Trapez
DB 144
Listing sheet Trapez DB 144 Eulumdat Trapez 144

 Assembly instructions
 CE declaration
