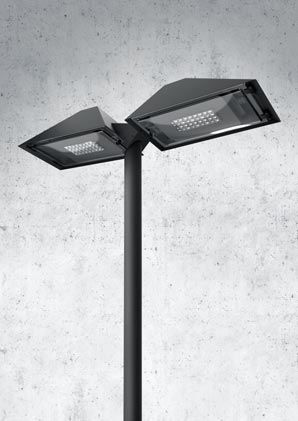

TRAPEZ 14X

Technical Mast Extension / Pop-Top Luminaire LED Module With High Power LEDS

TECHNICAL LIGHTING | TRAPEZ 14X

• Substainable: Tool-free change of electronic and LED modules
• Reliable: Lifetime of LED driver and LED modules at 85,000h
• Holistic: Unified design of the product family for your various applications
• Available with Zhaga Socket

Application areas :

• Roads in residential areas
• Pedestrian Crossings
• Main roads
• Parking areas
• Secondary roads
• Parks and walkways

Technical specifications:

Mounting type: Post top (Ø 76, 60 mm)
IP Protection class: IP 65
Optical System: Asymmetric wide beam and asymmetric forward light distribution
Rated luminous flux: 2x (4,200 – 7,000) lm
Colour temperature: 3,000 / 4,300 K
Dimming (power control): Power line control / Digital
Electrical protection class: Class I / II
Rated voltage / Frequence: 198 – 264  / 220 – 240 V / 50 – 60 Hz
Light point height: 5 – 8 m
Lighting classes: ME/S

Other advantages :

• Luminaire series in four sizes
• Optics for various applications

Downloads

Trapez 143:
 Technical Datasheet Trapez 143
 Eulumdat Trapez 143

Trapez 144:
Technical Datasheet Trapez 144
Eulumdat Trapez 144

Trapez 145:
Technical Datasheet Trapez 145
Eulumdat Trapez 145

Trapez 146:
Technical Datasheet Trapez 146
Eulumdat 146

 CE-Declaration
