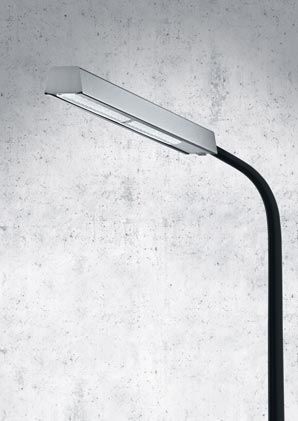

SLIM TWIN
Technical With Two Self Sufficient LED Module
TECHNICAL LIGHTINGS | SLIM TWIN
- Modular LED system with 2 modules and integrated electronics
- Sustainable concept with technology guarantee
- Modular light distribution
- Aligned to the light classes S5 to S2 and ME6 to ME4
- Average lifetime: 100,000 operating hours
- Completely preassembled with connection cables and modules
- Intelligent control possible
- Integrated overheating protection
- Development and production in Germany
The most important areas of application:
- Service roads
- Local distributor roads
- Main roads
- Industrial outdoor areass
Technical Data:
Materials: Aluminum extruded profile, painted similar to DB703
Dimensions: 1,440 x 135 x 90 mm | 1,160 x 135 x 90 mm
Color temperature: 4,000 K (neutral white), 5,000 K (cold white), optional 3,000 K (warm white)
Power consumption: 20 – 80 W (depending on luminous flux)
Luminous flux over lifetime: 90 % after 60,000 hours (in accordance with IES LM 80 & TM 21) 80 % after 100,000 hours
Certification: CE, ENEC, VDE, EMC
Other advantages:
- Aligned to light classes S5 to S2 and ME6 to ME4
- Average lifetime: 100,000 operating hours
- Intelligent control possible
- Integrated overheating protection
- Development and production in German
Technical Datasheet
