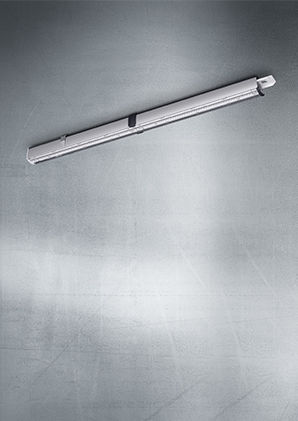

Q-Rail Plus
Tracking System with Quick Assembly System
- Economical: Operating cost saving (up to 85% in comparison to fluorescent lamps)
- Easy: Tool less installation with quick mounting system
- Flexible: Various optics for different application areas
- Efficient: Mid power LED module with up to 155 lm/W
- Save: Emergency lighting feasible
Application areas
- Warehouses
- Logistics Halls
- Industrial Halls
- Production Halls
- Sales Rooms
Specifications
Material: High-quality and torsion-resistant mounting rail made of aluminum, cover made of PP
Mounting type: Chain suspension
Dimensions (Length x Breadth x Height): 1.500 mm | 3000 mm | 4500 mm x 90 mm x 85 mm
IP Protection class: IP 54
Light source: LED-Moduls with 160 Mid-Power-LEDs
Optical system: Wide and narrow beam light distribution
Rated luminous flux: 2.000 lm – 10.000 lm
Light efficiency: up to 155 lm/W
Colour temperature: 4.000 K
Colour rendering index (RA): > 80
Dimming (Power control): On – Off / DALI
Lifetime at (ta) 25°C: L80 | B10 after 50.000h operating hours
Electrical protection class: Class I
Operating voltage: 220 – 240 V | 50 – 60 Hz
Light point height: 3 – 20 m (*1)
Admitted ambient temperature (ta):– 25 C° to + 35 C° (*2)
Certification: CE, ENEC 11, A++, A+, suitable for IFS certified companies according to DIN 10500
*1: Depending on the reflectance of the premises
*2: Depending on the luminous flux
