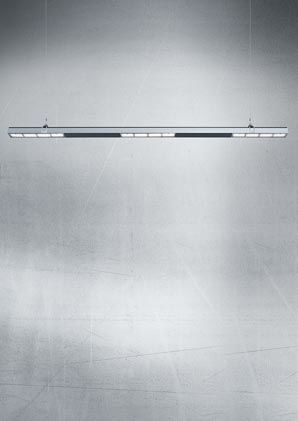

IL2 PLUS
Modular Lighting System
LIGHT LINE SYSTEMS | IL2PLUS
- Secure: Warp-resistant aluminum rails
- Innovative: Intelligent temperature management
- Scalable: Emergency lighting is possible
- Flexible: Sensor technology can be integrated and expanded at any point on the rail
- Safe investment: Replacement part availability of at least 20 years
The most important areas of application:
- Warehouses
- Logistics facilities
- Factory facilities
- Production workshops
Technical Data:
Dimensions (L x W x H):
LED module: 592 x 72 mm
Support rail: 0.6 m / 1.20 m / 3.00 m / 4.20m
Length: 600 / 1,200 / 3,000 / 4,200 x 90 x 85 mm
Luminaire type: LED module each with 104 LEDs
Color temperature: 4,000 K (840) / 5,000 K (850) / 6,500 K (865)
Power consumption: 22 W (3,300 lm) / 27 W (4,000 lm) /32 W (4,700 lm)
Certification: CE, ENEC 25
IP Certification: (Luminaire) IP 20 / IP 40 / IP 54
Protection class System: Protection class I /electronic drivers and modules: Protection class II
Other advantages:
- Highly flexible LED light line system
- Modular design
- Simple and practically tool-free installation
- Separate replacement of electronic drivers and LED module
- The IP Protection class of the luminaire can be upgraded to IP54 at any time
- At least 80% luminous flux after an average lifetime of 60,000 operating hours
Downloads:
CE-Declaration
CE-Erklärung Nedap-Node
Assembly Instructions:
