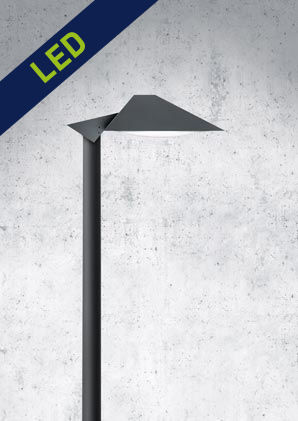

HELLUX TRAPEZ LED DB 14X
Technical Mast Extension /Post-Top Luminaire LED modules with High-Power LEDs
MASTLEUCHTEN BAHNSTEIG | TRAPEZ LED DB 14X
- Practical: Tool-less bulb change
- Optimized silicone seal
- Dirt-resistant design
The main areas of application:
- platforms
Technical specifications:
Type of mounting: Pole extension / Pole attachment (Ø 76 or 60 mm) Degree of
protection: IP65
Optical system: Wide beam light distribution
Rated luminous flux : 2x 1,200 lm – 2x 5,000 lm | 2,400 – 7,200 lm
Protection class: SK II
Operating voltage: 220 – 240 V
Light point height: 6 – 8 m
Downloads:
Trapeze LED DB 143:
Technical data sheet Trapez LED DB 143
Eulumdat on request.
Trapez LED DB 144:
Technical Datasheet Trapez LED DB 144
Eulumdat on request.
