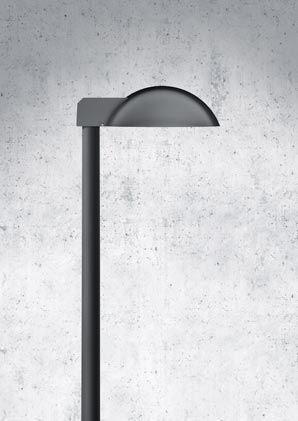

HELLUX ELLIPSE DB 13X

Railway-Listed Platform Light with a Beautiful Design Languages

HELLUX Ellipse DB 13X

• Toolless light source change
• Automatic mains disconnection when opening the luminaire
• Easy disassembly of the E-block
• Adjustable angle of attack: 2 ° to 14 ° in the defined 3 ° grid (DB 131 only)

The main areas of application:

• platforms

Technical specifications:

Dimension (L x W x H): 860 x 340 x 187 mm
Illuminant – Type: HI and HS illuminant Color
temperature: 3000 k
Rated power: 50 W  | 70 W
Protection class: SK II
Certificates: ENEC, CE Protection
class: IP 66

Additional advantages:

• Optimized silicone seal
• Dirt-resistant design
• shapely
• DB-listed

Downloads:

Ellipse DB 130:

 Technical Datasheet Ellipse DB
130
Listing Sheet Ellipse DB 130 Eulumdat Ellipse DB 130

Ellipse DB 131:

 Technical Datasheet Ellipse DB 131
Listing
Sheet Ellipse DB 131 Station & Service Listing Sheet Ellipse DB 131 Networks

Eulumdat on request.

 Assembly instructions
 CE declaration
