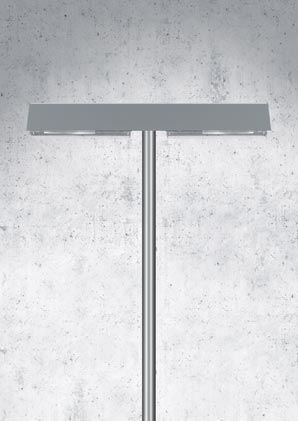

HELLUX BLOCKFORM DB 18X

Post-Top luminaire in Various Sizes

HELLUX BLOCKFORM LIGHT 18X

• Luminaire as double or single luminaire in two sizes each
• Toolless light source change
• Tool-free disassembly of the E-block
• Possibility for tool-free conversion of the light source

The main areas of application:

• Track field margins
• track fields
• access roads

Technical specifications:

 Mounting type: Pole top (Ø 76 mm) Protection
class:  IP54
Optical system:  wide or oblique beam distribution Color
temperature:  3.000 K
Protection class:  SK II
Operating voltage / frequency:  230 V / 50 Hz Light point height
:  8 – 14 m / 6 – 14 m

Additional advantages:

• Optimized silicone seal
• Dirt-resistant design
• DB-listed

Downloads

Block shape light 181:

Technical Data Sheet Block
Light 181
Listing Sheet Block Light 181 Eulumdat Block Light 181

Block shape light 183-8:

 Technical Data Sheet Block
 Light 183
Listing Sheet Block Light 183 Eulumdat Block Light 183

 Assembly instructions
 CE declaration
