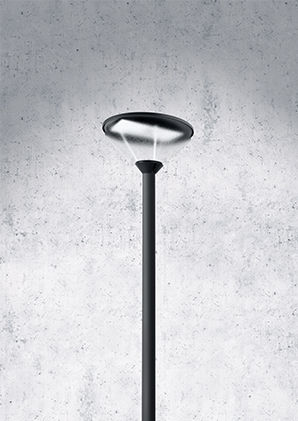

HELLUX 417-2
Mushroom Lamp Post Top COB LED Module
Your product advantages
- Glare control: Glare reduction through structured glass
- Maintenance friendly: Tool-less opening to the top
- Reliable: Lifetime of the LED Driver and LED module at 85,000h
Application areas
- Roads in residential areas
- squares
Specifications
Mounting type: Post top mounting (∅ 76 mm)
IP Protection class: IP 65
Optical System: Asymmetric wide beam and symmetric and diffusing beam
Rated luminous flux: 1.000 – 3.250 lm (250 lm Steps)
Colour temperature: 3.000 | 4.000 K
Dimming (power control): Power line control / Digital
Electrical protection class: Class I / II
Rated voltage / Frequence: 120 – 277 V | 50 – 60 Hz
Light point height: 3 – 5 m
Lighting classes: ME | S
Technical Datasheet
