FRAME

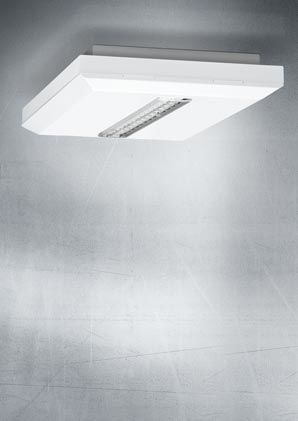

Modular LED Function Recessed Luminaire
FUNCTIONAL LUMINAIRES | FRAME
- Modular design: enables coupling of the LED module to the housing
- Optimized: light distribution
- Robust: Weather resistance
- Controls: Dimming
The most important areas of application:
- Petrol stations
- Parking garages
- Outdoor areas
Technical Data:
Installation type: Recessed or surface-mounted luminaires with 1, 2 or 3 LED modules each with 14 LEDs or 28 LEDs
Dimensions: 557 x 411 x 92 mm / 557 x 411 mm (external cover) Installation dimensions (L x W):
360 x 320 mm to 390 x 390 mm (inner)
Illuminant Type: Recessed or surface-mounted luminaires with 1, 2 or 3 LED modules each with 14 LEDs or 28 LEDs
Colour temperature: 4,000 K (neutral white) / 5,000 K (cold white)
Power rating: 2.500 lm / 5.000 lm / 7.500 lm / 10.000 lm / 15.000 lm
Certification: ENEC, CE, VDE, EMC, A++, A+, A
Other advantages:
- Energy efficiency
- Modules can be easily replaced with a Plug & Play system at any time
- Integrated thermal management
- 20-year replacement part guarantee
- Minimum of 80% luminous flux after an average lifetime of 100,000 operating hours
- Development and production in Germany
Technical Datasheet
